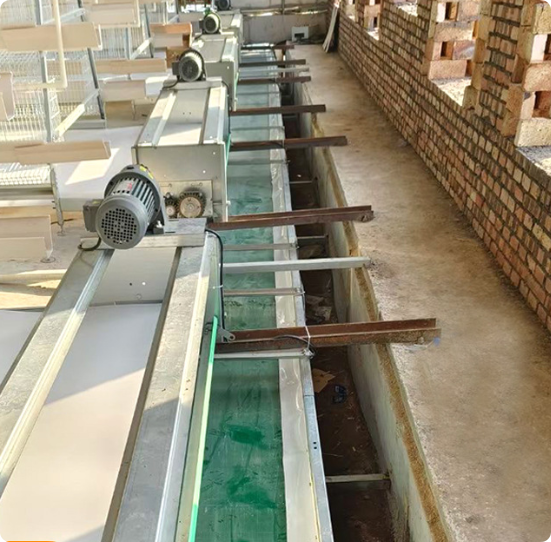

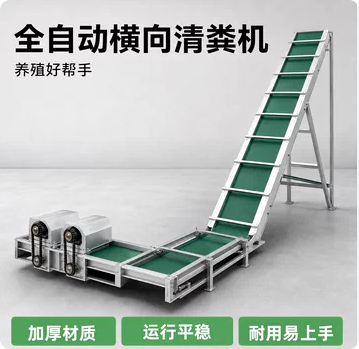

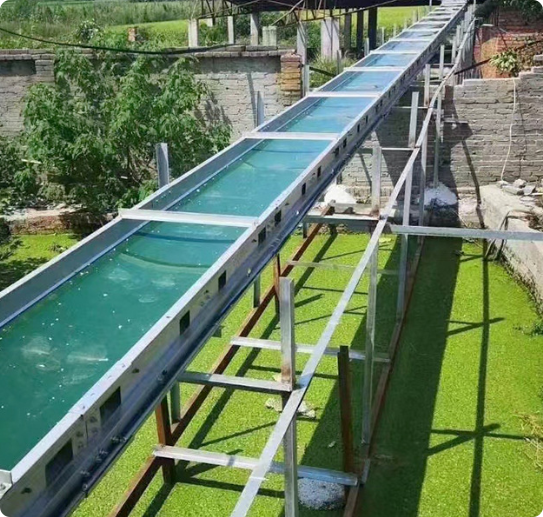

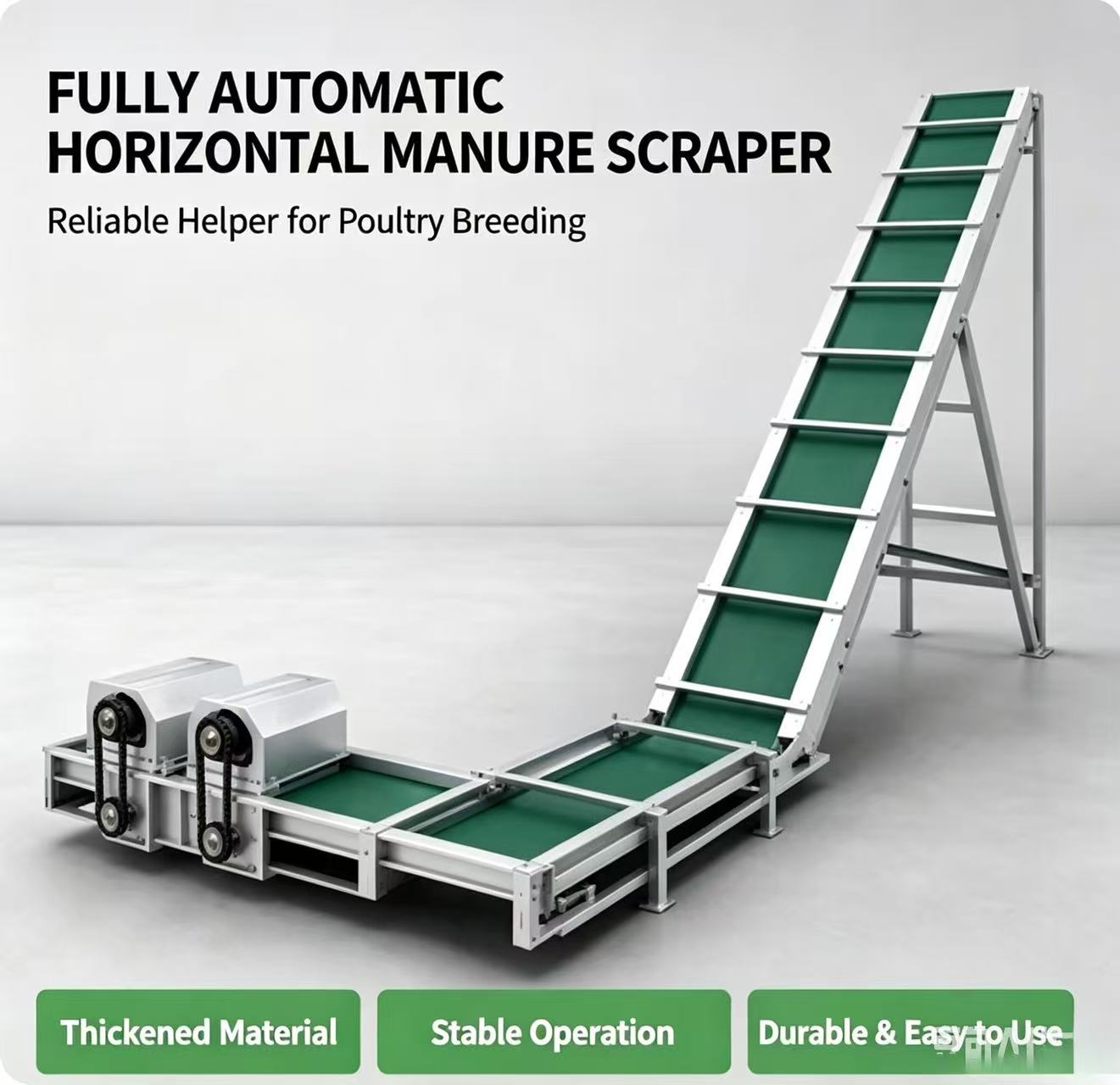

Horizontal Manure Scraper – Automatic Cross Manure Removal System for Modern Poultry Farms
A clean, dry, and low-ammonia environment is the foundation of high egg production, fast broiler growth, and long flock health. The horizontal manure scraper (cross manure removal system) is the core automation equipment designed to quickly and thoroughly remove manure from poultry houses, especially under layer cages, broiler cages, and breeder cages. It connects longitudinal manure belts or scraper channels, transporting manure horizontally to the outdoor inclined conveyor or collection pit—fully automatic, labor-free, and farm-friendly.
Why Choose Our Horizontal Manure Scraper?
1. Superior Structure & Durability
Hot-dip galvanized steel frame: Anti-rust, anti-corrosion, withstands high ammonia and humid environments; service life 15+ years.
Reinforced scraper blade: 3–5 mm thick high-strength steel or rubber composite, clean scraping without residue.
Heavy-duty drive system: 1.5–3.0 kW geared motor, stable operation for 24/7 continuous use.
Anti-deviation & anti-slip design: Front/rear guide rollers and tensioning device ensure no belt deviation or slipping, even with wet manure.
2. High Efficiency & Labor Saving
Fully automatic operation: Timed or sensor-based start/stop; one worker can manage 5–10 houses.
High cleaning speed: Up to 20 m/min, suitable for houses up to 150 m long.
One machine for multiple rows: Connects 2–4 longitudinal channels, centralized manure collection.
Reduces labor cost by 70%: No manual shoveling, no wheelbarrow transport.
3. Improve Flock Health & Production
Reduce ammonia by 50–60%: Manure removed daily, no accumulation, less harmful gas.
Lower disease risk: Dry litter, less bacteria and parasites, lower mortality.
Stable egg production rate: Clean environment reduces stress, keeps laying rate at 85–92%.
Better broiler growth: Low ammonia improves feed conversion ratio (FCR), faster weight gain.
4. Flexible Installation & Wide Application
Horizontal installation: Fits under cage rows, ground-level or pit-mounted.
Customizable size: Width 600–2500 mm, length up to 150 m.
Multi-scenario use: Layer farms, broiler farms, breeder farms, duck/goose farms.
Easy maintenance: Modular design, quick replacement of wearing parts.
How It Works
1.Manure falls from cages onto longitudinal manure belts or scraper channels.
2.The horizontal scraper collects manure from each channel and moves it horizontally.
3.Manure is discharged to an outdoor inclined conveyor or collection pit.
4.Optional: Connect to manure trucks or organic fertilizer processing equipment.
Technical Specifications (Customizable)
Frame: Hot-dip galvanized steel
Scraper Blade: High-strength steel / rubber composite
Motor Power: 1.5 kW / 2.2 kW / 3.0 kW (380V/220V)
Speed: 10–20 m/min
Max Length: 150 m
Width: 600 mm–2500 mm
Control: Automatic timer / manual switch
Final Advantages for Your Farm
✅ Save labor & cost
✅ Reduce ammonia & disease
✅ Boost egg production & FCR
✅ Durable & low maintenance
✅ Fit all cage types & farm sizes
Invest in our horizontal manure scraper today—build a cleaner, healthier, and more profitable poultry farm!
