H-Type Stacked Automatic Broiler Cage System: The Best Investment for Modern Large-Scale Broiler Farms
Introduction
Global broiler farming is shifting from scattered floor raising and traditional A-type ladder cages to H-type vertical stacked broiler cage systems. As land costs rise, labor shortages become severe, and food safety standards tighten across Latin America, Africa, Southeast Asia and Middle East, intensive fully automatic H-type broiler equipment has become the standard choice for farms with over 30,000 broilers per house.

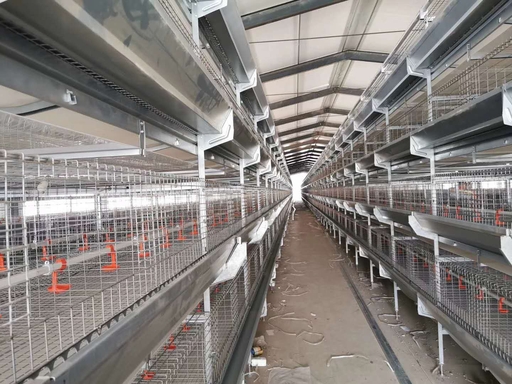

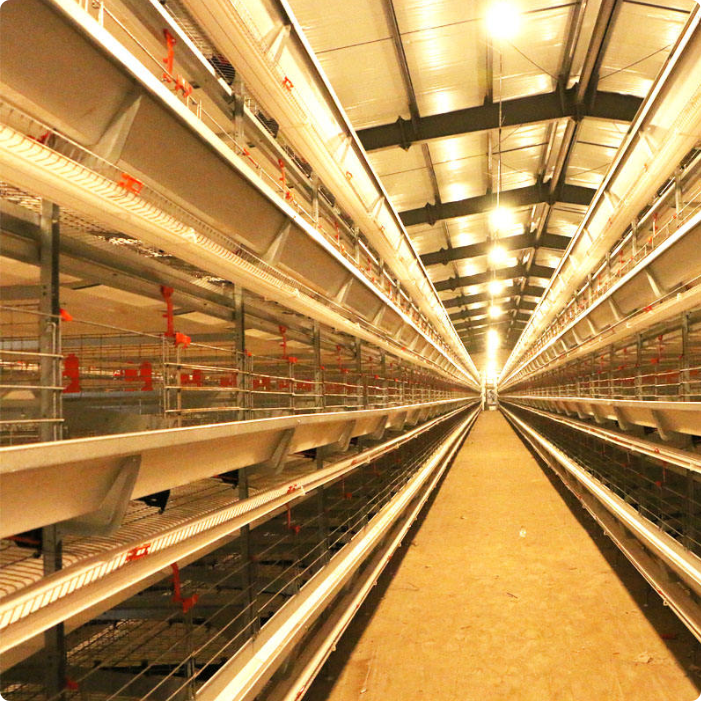

Unlike staggered A-type cages, H-type frames stack each tier perfectly vertically with no overlapping gaps. Every layer matches an independent PP manure belt, matched with automatic feeding, adjustable drinking, centralized manure removal and auto broiler harvesting, forming a closed intelligent breeding line. This article will fully compare H-type and A-type broiler cages, break down core advantages, complete supporting configurations and real farm return data to help global poultry investors make the right decision.
1. Core Comparison: H-Type VS A-Type Ladder Broiler Cage
We list 7 core dimensions that overseas farm owners care most about for intuitive reference:
| Comparison Item | H-Type Stacked Broiler Cage | A-Type Ladder Broiler Cage | Real Farm Impact |
| Space Utilization | 3–6 tiers vertical stacking, save 60–70% land; 30–50% more broilers on same barn area | 2–3 staggered tiers, large aisle & vertical gap waste land | H-type cuts land investment cost, ideal for limited land Brazil & coastal high-land-price areas |
| Manure & Hygiene | Independent PP manure belt per tier, manure transported out daily; zero cross-layer manure contamination | Manure falls directly to bottom ditch, upper layer waste splashes on lower broilers | H-type ammonia reduced by 45%, coccidiosis & foot dermatitis mortality drop 10%+ |
| Labor Cost | Full auto feeding, watering, manure cleaning, auto harvest; 1–2 workers manage 50,000–100,000 broilers | Semi-auto only, manual catching broilers; 3–5 staff for 30,000 birds | H-type cuts labor expense by 60–70% annually, solves labor shortage pain points |
| Feed Conversion Ratio (FCR) | Restricted active range + uniform auto feeding, feed waste <2%; FCR optimized 0.08–0.12 | More free movement, uneven manual feeding, feed waste up to 6% | H-type saves tons of feed per batch, greatly raise gross profit |
| Harvest Efficiency | Pull-out plastic slat auto harvesting, 5,000–8,000 birds per hour; broiler injury rate ≤3% | Manual cage-by-cage catching, low speed, bruise & fracture rate 10%+ | Less damaged finished chicken, higher market selling price |
| Service Life & Maintenance | Full hot-dip galvanized 275g/m² frame & mesh, 20–25 years lifespan; modular design easy replacement | Partial electro-galvanized optional, easy rust in high humidity; dismount complex | H-type long-term maintenance cost reduced by half |
| Applicable Farm Scale | Large industrial farms ≥30,000 birds per house, closed tunnel ventilation barn | Small-medium farms 10,000–30,000 birds, simple open-sided sheds | Large new construction farms globally prioritize H-type |
2. Unmatched Core Advantages of H-Type Automatic Broiler Cage System
2.1 Ultra-High Stocking Density, Double Production Capacity

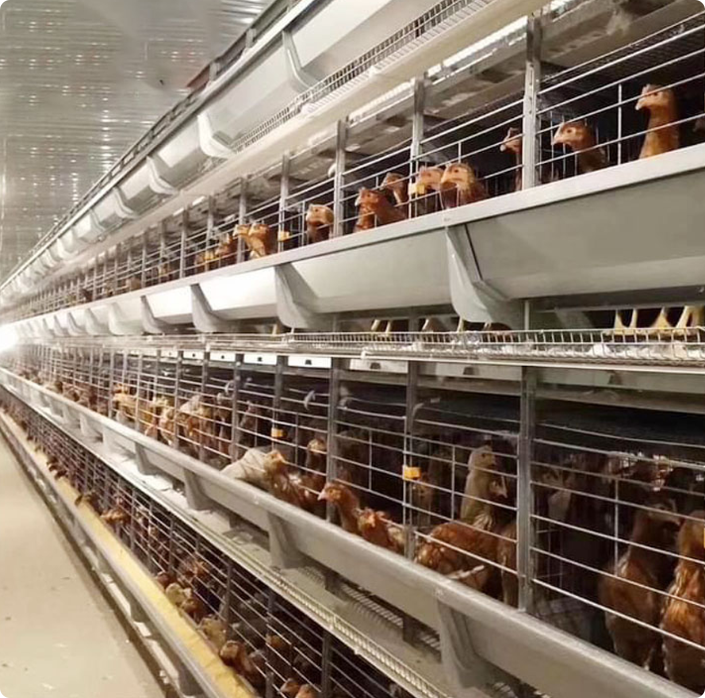

H-type multi-layer vertical layout maximizes vertical space of closed chicken houses. A standard 100m×15m tunnel ventilation barn can raise up to 80,000–120,000 broilers with 4–6 tier H cages, while A-type only holds 40,000 at most. For Brazilian and African farmers facing tight land resources, expanding production without building new barns directly lowers fixed asset investment.
2.2 Independent Layer Manure Belt, Strict Biosecurity
The biggest pain point of A-type cages is cross-layer manure pollution, which continuously triggers intestinal diseases. Each tier of H-type cage installs thick anti-aging PP manure conveyor belt, collecting manure and transporting it out of the house every day. The broiler contact manure time is minimized, ammonia concentration in the house stays below 10ppm, creating dry and clean growing environment, meeting EU, South America poultry health inspection standards.
2.3 Full Set Automated Matching, Realize Unmanned Daily Management
Complete H-type broiler breeding line includes supporting systems, fully synchronized intelligent control:
1.Automatic Feeding System: 10–50 ton galvanized silo + horizontal spiral conveyor + traveling feeding cart, adjustable feed tray height matching broiler growth from day-old chick to market weight, uniform feeding to eliminate uneven flock weight.

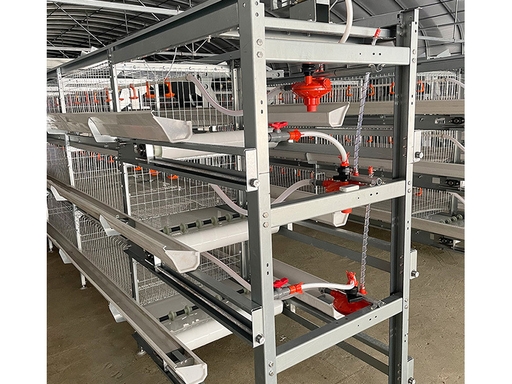

2.Liftable Nipple Drinking Line: Integral lifting design, low position for brooding, high position for fattening; stainless steel anti-clog nipples with water filter, prevent biofilm and E. coli reproduction.
3.Layer-by-Layer Manure Removal System: Longitudinal manure belt + horizontal centralized conveyor, dry manure with high fertilizer value, easy to sell as agricultural raw material.

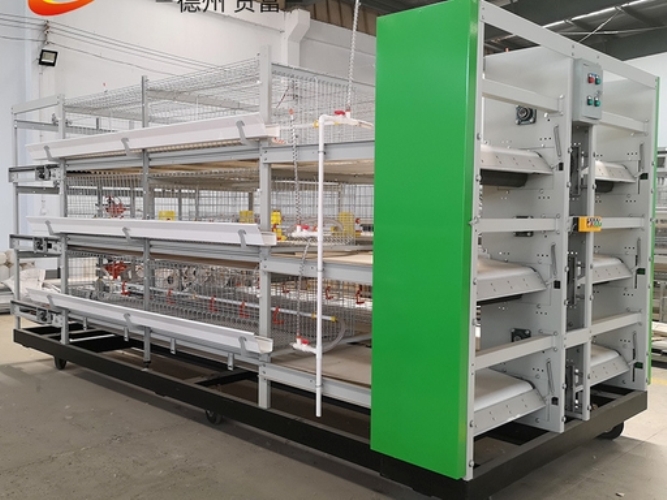

4.Auto Broiler Harvest System: Pull-out plastic bottom slat design, one-key push slats, all broilers fall on manure belt and transport to collection outlet, drastically shorten harvesting cycle before slaughter.
5.Intelligent Environmental Control: PLC touch screen controller, auto adjust negative pressure fan, cooling pad, light, temperature & humidity; power failure, high temperature, feed shortage remote alarm via mobile phone.
2.4 Premium Hot-Dip Galvanized Material, Adapt to Global Harsh Climate
All cage frame, wire mesh, support brackets adopt Q235 steel after whole-piece hot dip galvanizing, zinc layer thickness ≥275g/㎡. Strong anti-rust and anti-corrosion performance, perfectly adapt to high temperature & humidity coastal areas of Brazil, rainy tropical Africa, ammonia corrosive chicken house environment. Ordinary electro-galvanized A-type cages rust within 3–5 years, while our H-type equipment can work stably for over 20 years with low replacement cost.
2.5 Better Flock Uniformity, Higher Batch Profit
Controlled activity space reduces broiler energy consumption; auto equal feeding ensures each chicken gets consistent nutrition. Flock weight difference before delivery controlled within 5%, fewer small-sized eliminated broilers, higher average selling price. Combined with lower mortality and better FCR, each batch net profit increases significantly compared with A-type cage raising.
3. Suitable Customers & Global Application Scenarios
Our H-type stacked broiler cage system is widely exported to Brazil, Peru, Nigeria, Ghana, Mozambique, Vietnam, Indonesia and Middle East countries, perfectly fit three types of overseas investors:
1.New large-scale industrial broiler farm with single house capacity over 30,000 birds, plan to build closed tunnel ventilation chicken house;
2.Old farm expansion, limited land, need to double breeding capacity without purchasing new land;
3.Poultry integrator & slaughterhouse supporting self-owned breeding base, pursuing standardized batch raising and stable finished chicken supply.
For small farms below 10,000 birds with low budget and open simple sheds, we still recommend semi-automatic A-type ladder cages as a cost-effective alternative solution.
4. Complete Turnkey Support for Global Buyers
As a professional poultry equipment manufacturer with 15+ years export experience, we provide one-stop service for all H-type broiler cage orders:
·Custom tier design (3/4/5/6 tiers), cage size matching local broiler raising standard;
·CE, ISO9001, SONCAP certification documents for customs clearance in Africa & Latin America;
·English version PLC control system, operation manual and maintenance video;
·Overseas engineer door-to-door installation guidance and after-sales technical training;
·Spare parts long-term supply with favorable factory price.
Conclusion
In the long-term operation of commercial broiler farms, initial equipment investment cannot only compare upfront cost. H-type stacked automatic broiler cage balances space utilization, labor cost, feed consumption and flock survival rate comprehensively. Compared with A-type ladder cages, it brings continuous stable profit improvement in each breeding cycle, which has become the irreversible development trend of global intensive broiler farming.
If you plan to build or upgrade your broiler farm, contact our sales team to get customized layout drawing, detailed H vs A type cost-profit calculation sheet and factory quotation.
